Harvey Tool
836008-C4

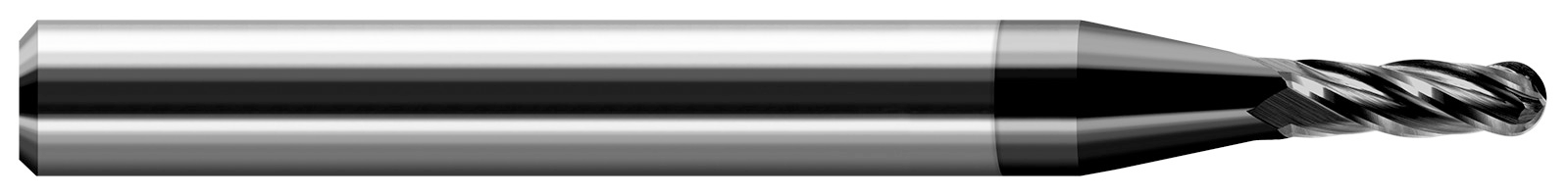

Miniature End Mill - Ball - Stub & Standard
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.3750" (3/8) Length of Cut Carbide Ball End Mill, 3 Flutes, Amorphous Diamond Coated |
|---|---|
| Short Description | 3 FL - 0.1250" (1/8) Cutter DIA x 0.3750" (3/8) LOC - Amorphous Diamond Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Ball |
| Metric | N |
| Coating | C4 |
| Length of Cut | 0.3750" (3/8) |
