Harvey Tool
836412-C4

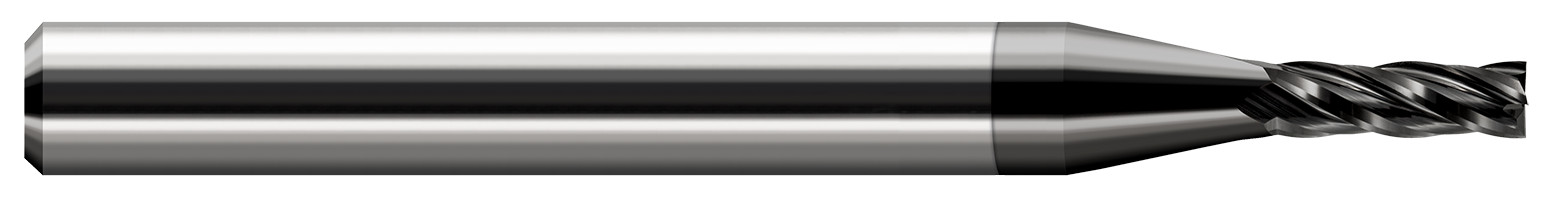

Miniature End Mill - Square - Stub & Standard
Specifications
| Long Description | 0.1875" (3/16) Cutter DIA x 0.6250" (5/8) Length of Cut Carbide Square End Mill, 3 Flutes, Amorphous Diamond Coated |
|---|---|
| Short Description | 3 FL - 0.1875" (3/16) Cutter DIA x 0.6250" (5/8) LOC - Amorphous Diamond Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 3 |
| LOC Multiple | (3x) |
| Weight | 0.024 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Square |
| Metric | N |
| Coating | C4 |
| Length of Cut | 0.6250" (5/8) |
