Harvey Tool
836798-C6
HT - 836798-C6
Specifications
| Overall Length (Inch) | 3-1/2 |
|---|---|
| Diameter (Inch) | 0.5 |
| Length Of Cut (Inch) | 1-1/4 |
| Coating/Finish | C6 |
| Short Description | 3/4-16 - 0.4950" Cutter DIA x 1.2500" (1-1/4) LOC - 4 FL - AlTiN Nano Coated |

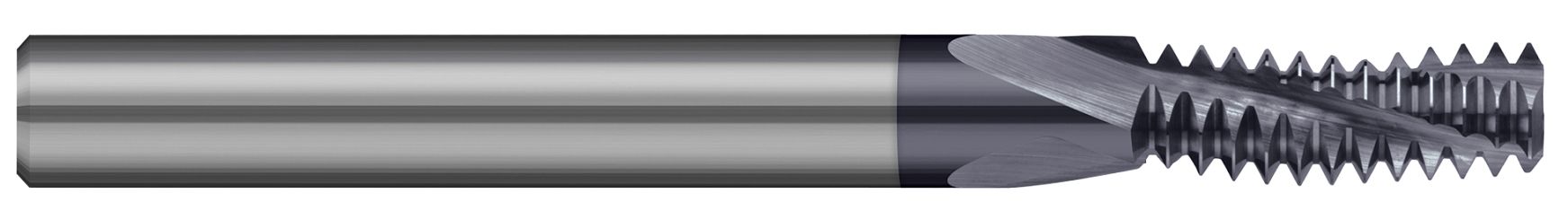

| Long Description | 0.4950" Cutter DIA x 1.2500" (1-1/4) Length of Cut Carbide Multi-Form 3/4-16 Thread Milling Cutter for Hardened Steels, 4 Flutes, AlTiN Nano Coated |
| Shank Size | 1/2 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.5 |
| Number Of Flutes | 4 |
| Metric | No |
| Length of Cut (Decimal) | 1.25 |
| Size | 3/4-16 |
| Coolant Through | No |
| Base Item Number | 836798-C6 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.5000" (1/2) |
| Weight | 0.291 |
| Double Ended | N |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.4950" |
| Profile | Multi-Form |
| Length of Cut | 1.2500" (1-1/4) |
| Center Cutting | false |
