Harvey Tool
838590-C3
HT - 838590-C3
Specifications
| Coating/Finish | C3 |
|---|---|
| Type | I |
| Overall Length (Inch) | 3-5/8 |
| Diameter (Inch) | 1-1/2 |
| Short Description | 1.5000" (1-1/2) Cutter DIA x 0.0300" Radius x 0.3750" (3/8) Width - Standard Slotting - 16 FL - AlTiN Coated |

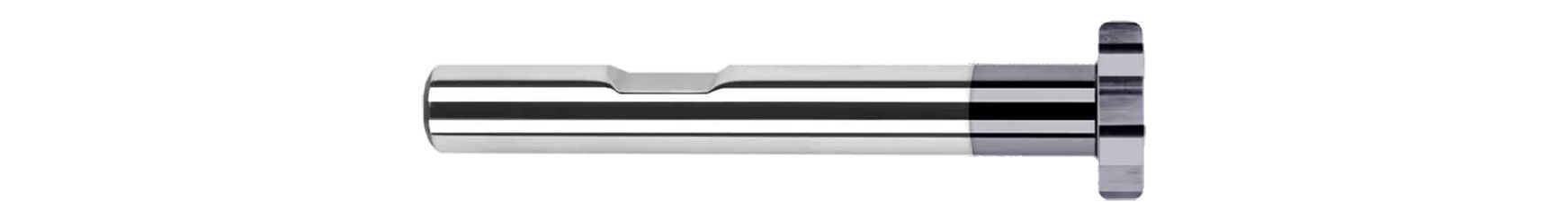

| Long Description | 1.5000" (1-1/2) Cutter DIA x 0.0300" Radius x 0.3750" (3/8) Width CarbideCorner Radius Reduced Shank Standard Standard Keyseat Cutter, 16 Flutes, AlTiN Coated |
| Cutter Width | 3/8 Inch |
| Shank Size (Fraction) | 3/4 Inch |
| Cutter Width (Decimal) | 0.38 |
| Shank Size (Decimal) | 0.75 |
| Number Of Flutes | 16 |
| Corner Radius (Decimal) | 0.03 |
| Radial Depth of Cut (Decimal) | 0.37 |
| Shank Length (Decimal) | 3.25 |
| Top Corner Radius | 0.03 |
| Base Item Number | 838590-C3 |
| Product Type | Industrial Supplies |
| Shank Length (Fractional) | 3-1/4 |
