Harvey Tool
841060-C3

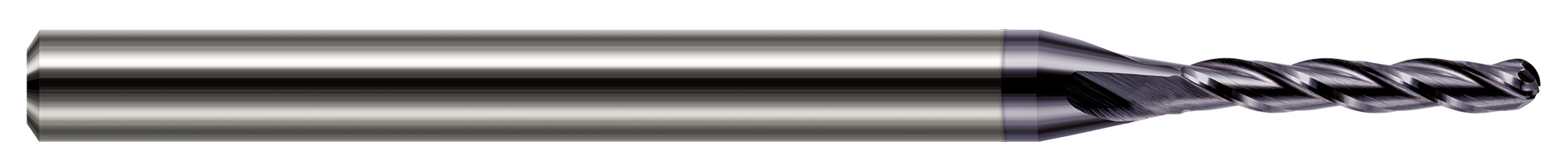

Miniature End Mill - Ball - Long Flute
Specifications
| Long Description | 0.0600" Cutter DIA x 0.3120" (5/16) Length of Cut Carbide Ball End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.0600" Cutter DIA x 0.3120" (5/16) LOC - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (5x) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0600" |
| Profile | Ball |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.3120" (5/16) |
