Harvey Tool
841360-C3
HT - 841360-C3
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Length Of Cut (Inch) | 0.09 |
| Coating/Finish | C3 |
| Short Description | 0.2500" (1/4) Shank DIA x 0.0300" Radius x 0° included - 1 FL - AlTiN Coated |

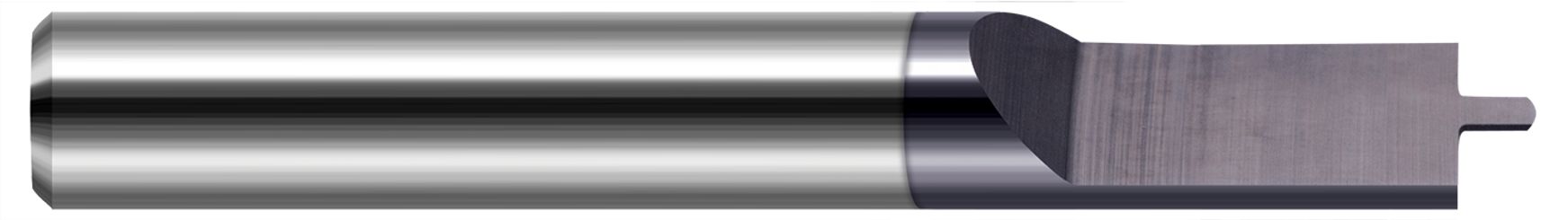

| Long Description | 0.2500" (1/4) Shank DIA x 0.0300" Radius x 0° included Carbide Ball Parallel Engraver, 1 Flute, AlTiN Coated |
| Metric | No |
| Shank Size | 1/4 Inch |
| Included Angle | 0 |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 1 |
| Radius (Decimal) | 0.03 |
| Split Length (Decimal) | 0.38 |
| Split Length (Fraction) | 3/8 |
| Angle per Side | 0 |
| Base Item Number | 841360-C3 |
| Product Type | Industrial Supplies |
