Harvey Tool
842911
HT - 842911
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 0.16 |
| Length Of Cut (Inch) | 0.51 |
| Coating/Finish | UN |
| Short Description | M5-0.80 - 0.1550" Cutter DIA x 0.5040" LOC - 3 FL |

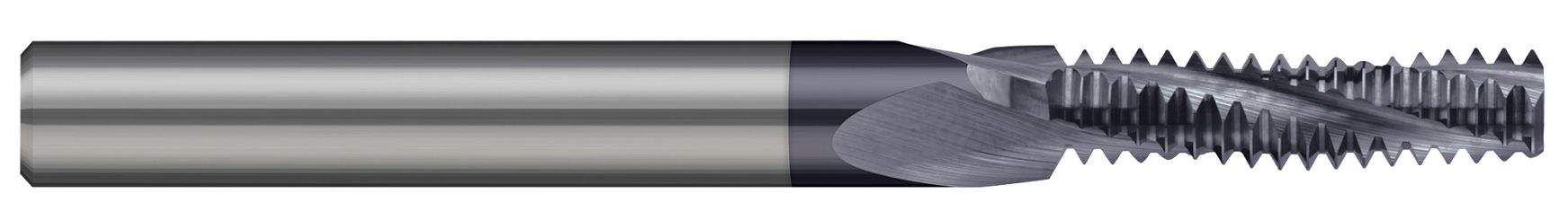

| Long Description | 0.1550" Cutter DIA x 0.5040" Length of Cut Carbide Multi-Form M5-0.80 Thread Milling Cutter, 3 Flutes |
| Shank Size | 3/16 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.19 |
| Number Of Flutes | 3 |
| Metric | No |
| Size | M5-0.80 |
| Base Item Number | 842911 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1875" (3/16) |
| Weight | 0.031 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1550" |
| Profile | Multi-Form |
| Length of Cut | 0.5040" |
