Harvey Tool
843509-C6

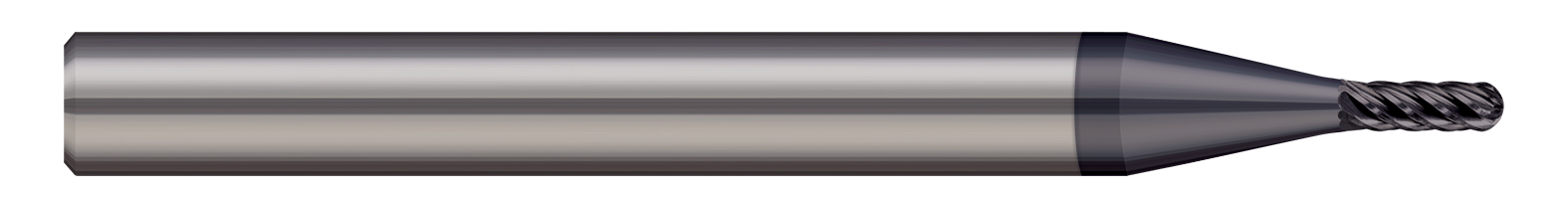

End Mill for Hardened Steels - Ball
Specifications
| Long Description | 0.1406" (9/64) Cutter DIA x 0.4250" Length of Cut Carbide Ball End Mill for Hardened Steels, 6 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 6 FL - 0.1406" (9/64) Cutter DIA x 0.4250" LOC - AlTiN Nano Coated |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 6 |
| LOC Multiple | (3x) |
| Weight | 0.053 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1406" (9/64) |
| Profile | Ball |
| Metric | N |
| Coating | C6 |
| Length of Cut | 0.4250" |
