Harvey Tool
845614

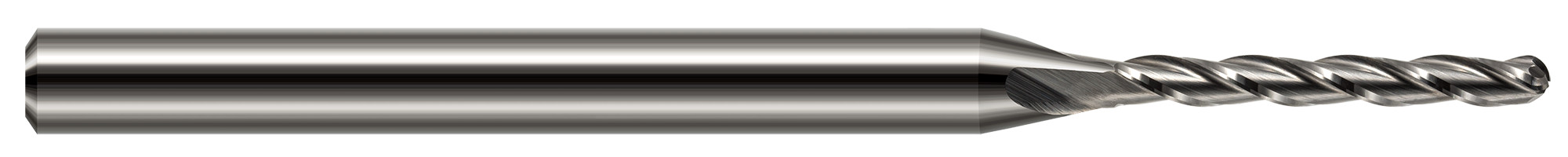

Miniature End Mill - Ball - Long Flute
Specifications
| Long Description | 0.2187" (7/32) Cutter DIA x 1.7500" (1-3/4) Length of Cut Carbide Ball End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.2187" (7/32) Cutter DIA x 1.7500" (1-3/4) LOC |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 4 |
| LOC Multiple | (8x) |
| Weight | 0.079 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.2187" (7/32) |
| Profile | Ball |
| Metric | N |
| Coating | UN |
| Length of Cut | 1.7500" (1-3/4) |
