Harvey Tool
846435

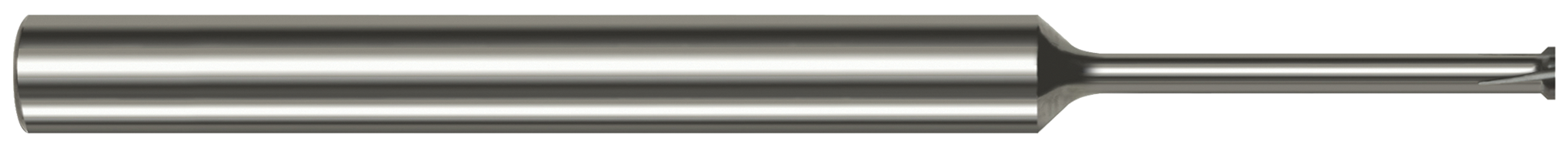

Back Deburring Mill
Specifications
| Long Description | 0.1875" (3/16) Head DIA x 0.5630" Neck Length x 45° per side Carbide Back Deburring Mill, 6 Flutes |
|---|---|
| Short Description | 0.1875" (3/16) Head DIA x 0.5630" Neck Length x 45° per side - 6 FL |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 6 |
| Weight | 0.026 |
| Overall Length | 2.0000" (2) |
| Profile | Back Chamfer |
| Metric | N |
| Head Diameter | 0.1875" (3/16) |
| Neck Diameter | 0.1430" |
| Neck Length | 0.5630" |
| Coating | UN |
| Length of Cut | 0.0191" |
| Angle per Side | 45 |
| Chamfer Center Diameter | 0.1689" |
| Included Angle | 90 |
