Harvey Tool
850231

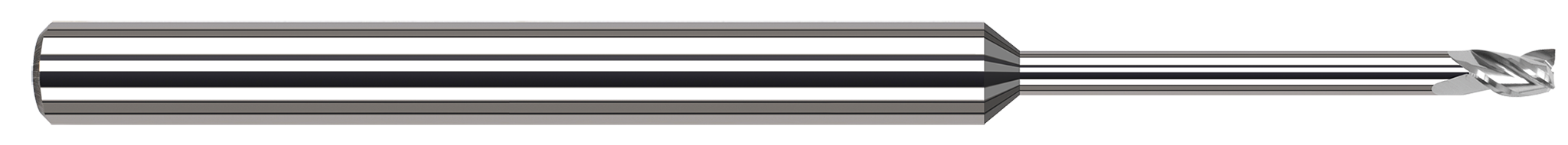

Miniature End Mill - 3 Flute - Square
Specifications
| Long Description | 0.0310" (1/32) Cutter DIA x 0.0460" Length of Cut x 0.3430" (11/32) Reach Carbide Square End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.0310" (1/32) Cutter DIA x 0.0460" LOC x 0.3430" (11/32) Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.013 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Square |
| Reach Multiple | (11x) |
| Metric | N |
| Neck Diameter | 0.0300" |
| Coating | UN |
| Length of Cut | 0.0460" |
