Harvey Tool
851216-C6
HT - 851216-C6
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Type | II |
| Length Of Cut (Inch) | 7/16 |
| Coating/Finish | C6 |
| Short Description | 0.2500" (1/4) Shank DIA x 0.0100" Radius x 30° included - 2 FL - AlTiN Nano Coated |

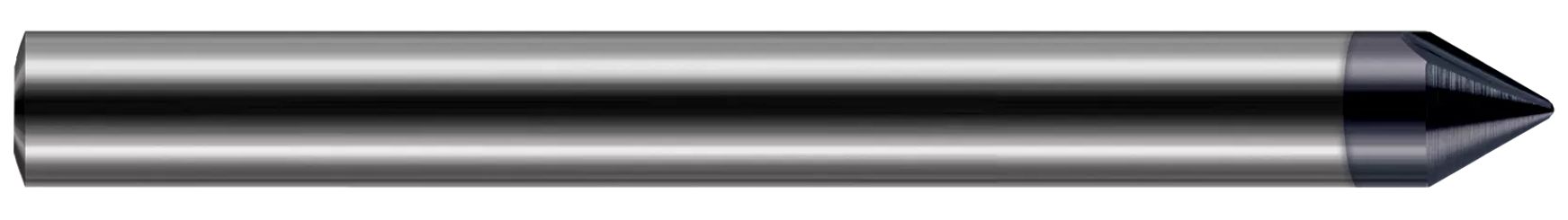

| Long Description | 0.2500" (1/4) Shank DIA x 0.0100" Radius x 30° included Carbide Radius Engraver for Hardened Steels, 2 Flutes, AlTiN Nano Coated |
| Metric | No |
| Shank Size | 1/4 Inch |
| Included Angle | 30 Degrees |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 2 |
| Radius (Decimal) | 0.01 |
| Angle per Side | 15 Degrees |
| Base Item Number | 851216-C6 |
| Product Type | Industrial Supplies |
