Harvey Tool
854708-C4

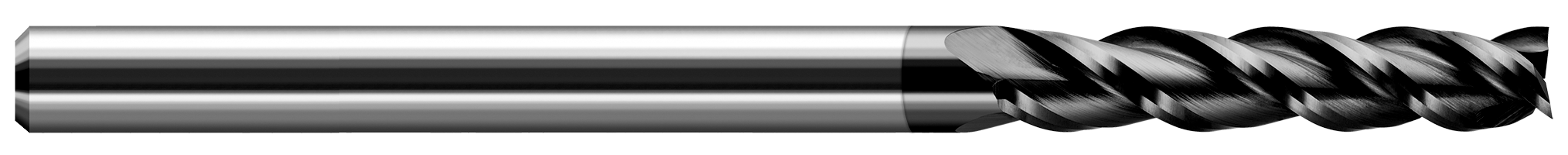

End Mill for Plastics - 3 Flute - Square
Specifications
| Type | II |
|---|---|
| Short Description | 3 FL - 0.1250" (1/8) Cutter DIA x 1.2500" (1-1/4) LOC - Amorphous Diamond Coated |
| Shank Diameter | 0.1250" (1/8) |
| Overall Length | 2.5000" (2-1/2) |
| Metric | N |
| LOC Multiple | (10x) |
| Long Description | 0.1250" (1/8) Cutter DIA x 1.2500" (1-1/4) Length of Cut Carbide Square Upcut End Mill High Finisher for Plastic, 3 Flutes, Amorphous Diamond Coated |
| Length of Cut | 1.2500" (1-1/4) |
| Coating | C4 |
| Weight | 0.013 |
| Flutes | 3 |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Square |
