Harvey Tool
856431-C6

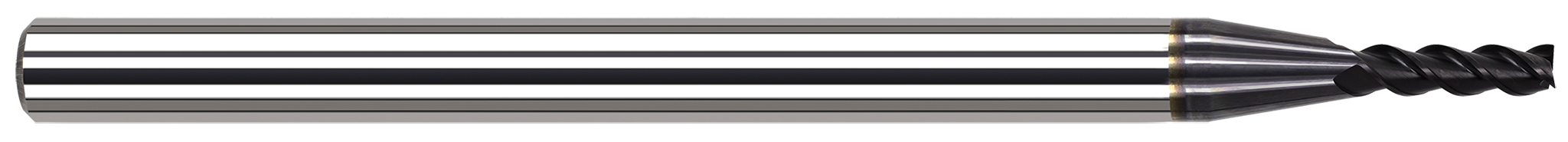

End Mill for High Temp - Corner Radius
Specifications
| Long Description | 0.0310" (1/32) Cutter DIA x 0.0100" Radius x 0.0930" (3/32) Length of Cut Carbide Corner Radius End Mill for Exotic Alloys, 4 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 4 FL - 0.0310" (1/32) Cutter DIA x 0.0100" Radius x 0.0930" (3/32) LOC - AlTiN Nano Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0310" (1/32) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C6 |
| Length of Cut | 0.0930" (3/32) |
| Corner Radius | 0.0100" |
