Harvey Tool
859603-C6

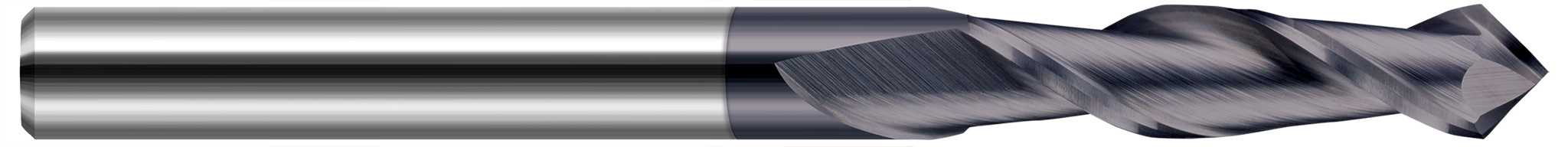

Drill/End Mill - Helical Tip - 2 Flute
Specifications
| Long Description | 0.0470" (3/64) Cutter DIA x 0.1410" Length of Cut x 90° included Carbide Helical Tip Drill/End Mill, 2 Flutes, AlTiN Nano Coated |
|---|---|
| Short Description | 0.0470" (3/64) Cutter DIA x 0.1410" LOC x 90° included - 2 FL - AlTiN Nano Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0470" (3/64) |
| Profile | Mill Style |
| Metric | N |
| Coating | C6 |
| Length of Cut | 0.1410" |
| Angle per Side | 45 |
| Included Angle | 90 |
