Harvey Tool
859632-C6
HT - 859632-C6
Specifications
| Coating/Finish | C6 |
|---|---|
| Overall Length (Inch) | 3 |
| Number Of Flutes | 2 |
| Length Of Cut (Inch) | 1 |
| Short Description | 0.5000" (1/2) Cutter DIA x 1.0000" (1) LOC x 90° included - 2 FL - AlTiN Nano Coated |

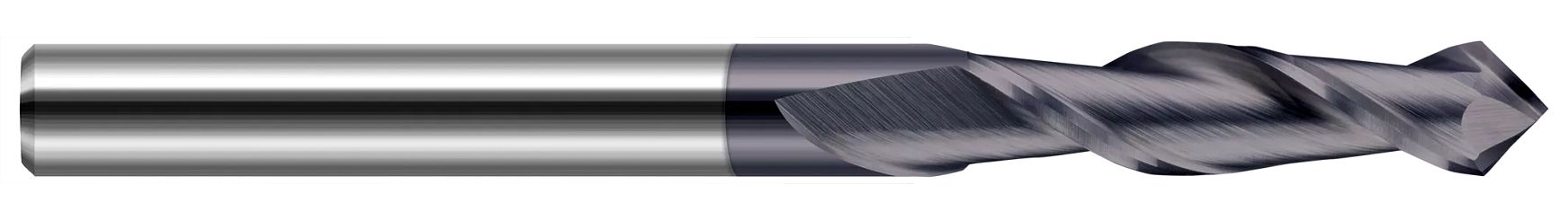

| Long Description | 0.5000" (1/2) Cutter DIA x 1.0000" (1) Length of Cut x 90° included Carbide Helical Tip Drill/End Mill, 2 Flutes, AlTiN Nano Coated |
| Shank Size | 1/2 Inch |
| Cutter Diameter (Fraction) | 1/2 |
| Included Angle | 90 Degrees |
| LOC Multiple | 2x |
| Angle per Side | 45 Degrees |
| Web Thickness (Decimal) | 0.012 |
| Base Item Number | 859632-C6 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.5000" (1/2) |
| Weight | 0.245 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.5000" (1/2) |
| Profile | Mill Style |
| Metric | N |
| Length of Cut | 1.0000" (1) |
