Harvey Tool
859720-C3

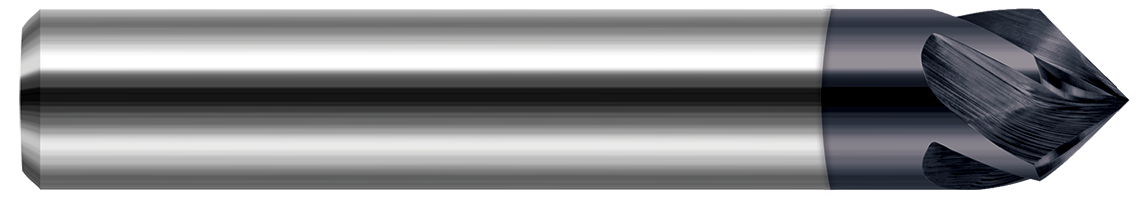

Chamfer Cutter - Flat End - Helical Flutes
Specifications
| Type | I |
|---|---|
| Short Description | 0.3125" (5/16) Shank DIA x 45° per side - 4 Helical FL - AlTiN Coated |
| Shank Diameter | 0.3125" (5/16) |
| Long Description | 0.3125" (5/16) Shank DIA x 45° per side Carbide Flat Chamfer Cutter, 4 Helical Flutes, AlTiN Coated |
| Flutes | 4 |
| Weight | 0.192 |
| Overall Length | 2.5000" (2-1/2) |
| Profile | Flat |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.1510" |
| Angle per Side | 45 |
| Included Angle | 90 |
