Harvey Tool
860195-C6
HT - 860195-C6
Specifications
| Coating/Finish | C6 |
|---|---|
| Type | I |
| Overall Length (Inch) | 2-1/2 |
| Diameter (Inch) | 1/4 |
| Short Description | 0.2500" (1/4) Cutter DIA x 0.1250" (1/8) Width x 0.3750" (3/8) Neck Length - Standard Slotting - 8 FL - AlTiN Nano Coated |

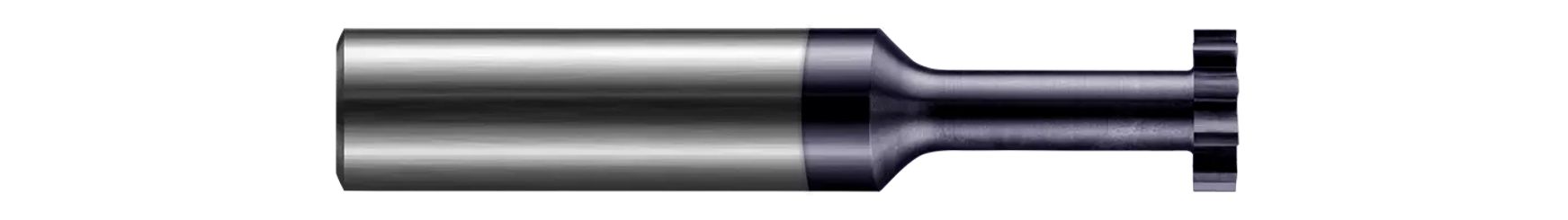

| Long Description | 0.2500" (1/4) Cutter DIA x 0.1250" (1/8) Width x 0.3750" (3/8) Neck Length CarbideSquare Standard Keyseat Cutter for Hardened Steels, 8 Flutes, AlTiN Nano Coated |
| Cutter Width | 1/8 Inch |
| Shank Size (Fraction) | 1/4 Inch |
| Neck Diameter | 1/8 Inch |
| Cutter Width (Decimal) | 0.13 |
| Shank Size (Decimal) | 0.25 |
| Neck Diameter (Decimal) | 0.13 |
| Number Of Flutes | 8 |
| Neck Length (Decimal) | 0.38 |
| Neck Length (Fraction) | 3/8 |
| Radial Depth of Cut (Decimal) | 0.05 |
| Reach Multiple | 1.5x |
| Base Item Number | 860195-C6 |
| Neck Diameter (Inch) | 0.13 |
| Product Type | Industrial Supplies |
