Harvey Tool
862610
HT - 862610
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 0.21 |
| Length Of Cut (Inch) | 0.12 |
| Coating/Finish | UN |
| Corner Radius (Decimal) | 0.01 |
| Short Description | 3 FL - 0.2100" Cutter DIA x 0.0100" Radius x 0.1180" LOC |

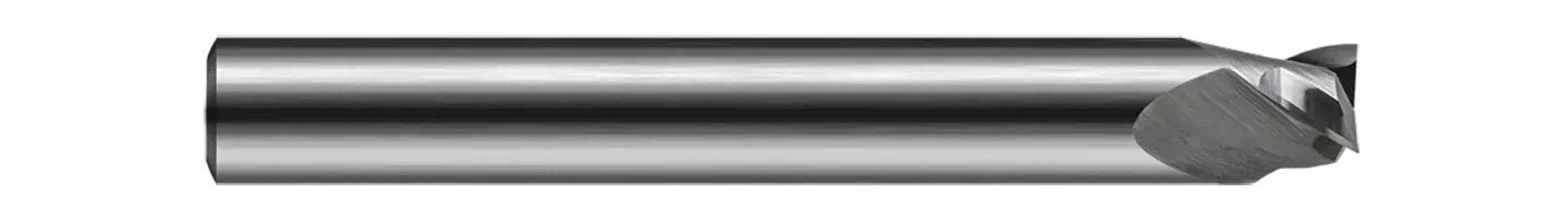

| Long Description | 0.2100" Cutter DIA x 0.0100" Radius x 0.1180" Length of Cut Carbide Picatinny Recoil Groove End Mills, 3 Flutes |
| Shank Size | 1/4 Inch |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 3 |
| Metric | No |
| Coolant Through | No |
| Base Item Number | 862610 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Weight | 0.062 |
| Double Ended | N |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2100" |
| Profile | Corner Radius |
| Length of Cut | 0.1180" |
| Center Cutting | false |
| Corner Radius | 0.0100" |
