Harvey Tool
867731
HT - 867731
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Diameter (Inch) | 0.04 |
| Type | I |
| Length Of Cut (Inch) | 0.03 |
| Coating/Finish | UN |
| Neck Diameter (Decimal) | 0.02 |

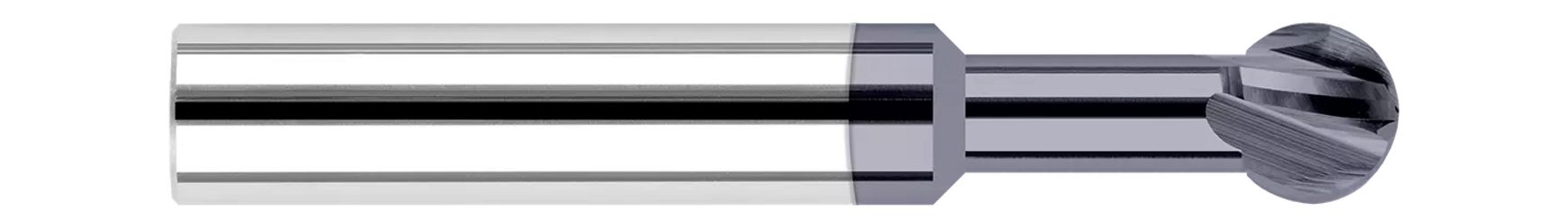

| Short Description | 0.0310" Cutter DIA x 0.2180" (7/32) Neck Length x 270° Wrap Angle - 2 FL |
| Long Description | 0.0310" Cutter DIA x 0.2180" (7/32) Neck Length x 270° Carbide Undercutting End Mill, 2 Flutes |
| Shank Size | 1/8 Inch |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 2 |
| Neck Length (Decimal) | 0.22 |
| Neck Length (Fraction) | 7/32 |
| Metric | No |
| Overall Reach (Decimal) | 0.25 |
| Radius (Decimal) | 0.02 |
| Radius (Fraction) | 1/64 |
| Wrap Angle | 270 |
| Base Item Number | 867731 |
| Neck Diameter (Inch) | 0.02 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.007 |
| Neck Angle | 0 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0312" (1/32) |
| Profile | Spherical |
| Neck Diameter | 0.0160" (.4 mm) |
| Neck Length | 0.2180" (7/32) |
| Length of Cut | 0.0270" |
| Radius | 0.0156" (1/64) |
