Harvey Tool
870940

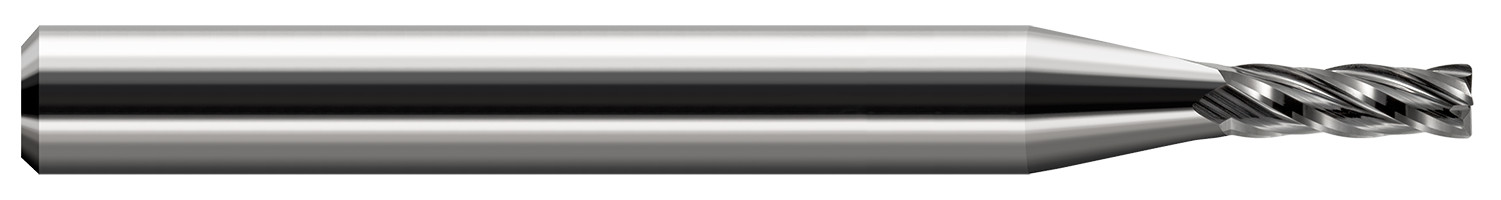

Miniature End Mill - 3 Flute - Corner Radius
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.0400" Radius x 0.5000" (1/2) Length of Cut Carbide Corner Radius End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.1250" (1/8) Cutter DIA x 0.0400" Radius x 0.5000" (1/2) LOC |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (4x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Corner Radius |
| Metric | N |
| Coating | UN |
| Length of Cut | 0.5000" (1/2) |
| Corner Radius | 0.0400" |
