Harvey Tool
874205

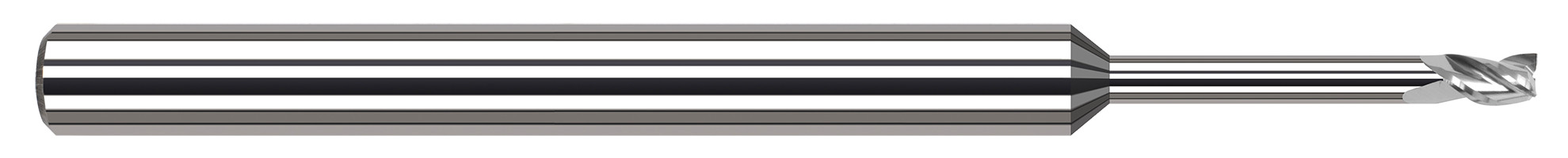

Miniature End Mill - 4 Flute - Square
Specifications
| Long Description | 0.1180" (3 mm) Cutter DIA x 0.1770" Length of Cut x 0.9500" Reach Carbide Square End Mill, 4 Flutes |
|---|---|
| Short Description | 4 FL - 0.1180" (3 mm) Cutter DIA x 0.1770" LOC x 0.9500" Reach |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.015 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1180" (3 mm) |
| Profile | Square |
| Reach Multiple | (8x) |
| Metric | N |
| Neck Diameter | 0.1165" |
| Coating | UN |
| Length of Cut | 0.1770" |
