Harvey Tool
875024
HT - 875024
Specifications
| Length Of Cut (Inch) | 0.13 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Type | II |
| Coating/Finish | UN |
| Number Of Flutes | 3 |
| Short Description | 0.3750" (3/8) Shank DIA x 50° per side - 3 Helical FL |
| Shank Size | 3/8 Inch |
| Overall Length | 2.5000" (2-1/2) |
| Shank Size (Decimal) | 0.38 |

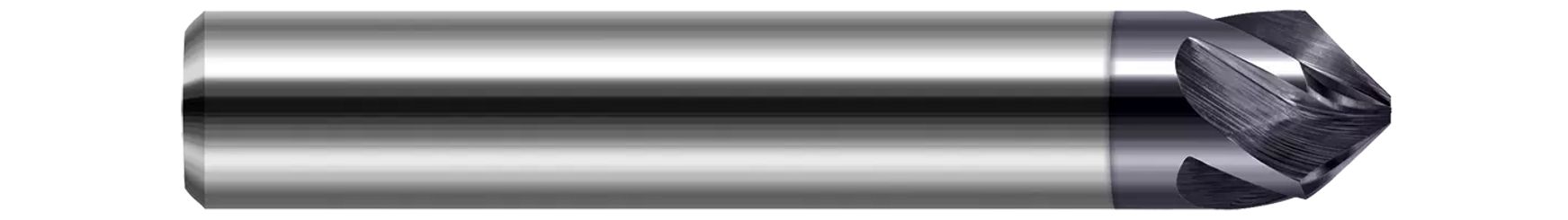

| Long Description | 0.3750" (3/8) Shank DIA x 50° per side Carbide Flat Chamfer Cutter, 3 Helical Flutes |
| Metric | No |
| Included Angle | 100 Degrees |
| Angle per Side | 50 Degrees |
| Tip (Decimal) | 0.07 |
| Length of Cut | 0.1280" |
| Base Item Number | 875024 |
| Product Type | Industrial Supplies |
| Weight | 0.132 |
| Shank Diameter | 0.3750" (3/8) |
| Profile | Flat |
