Harvey Tool
876710

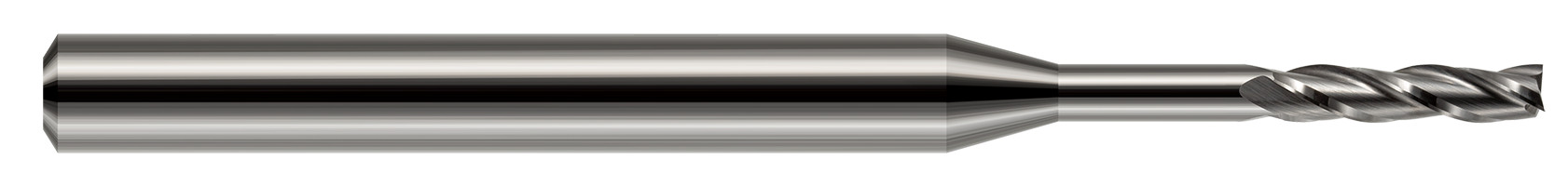

Miniature End Mill - 3 Flute - Square
Specifications
| Long Description | 0.1562" (5/32) Cutter DIA x 0.7500" (3/4) Length of Cut x 1.2500" (1-1/4) Reach Carbide Square End Mill, 3 Flutes |
|---|---|
| Short Description | 3 FL - 0.1562" (5/32) Cutter DIA x 0.7500" (3/4) LOC x 1.2500" (1-1/4) Reach |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 3 |
| LOC Multiple | (5x) |
| Weight | 0.035 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1562" (5/32) |
| Profile | Square |
| Reach Multiple | (8x) |
| Metric | N |
| Neck Diameter | 0.1520" |
| Coating | UN |
| Length of Cut | 0.7500" (3/4) |
