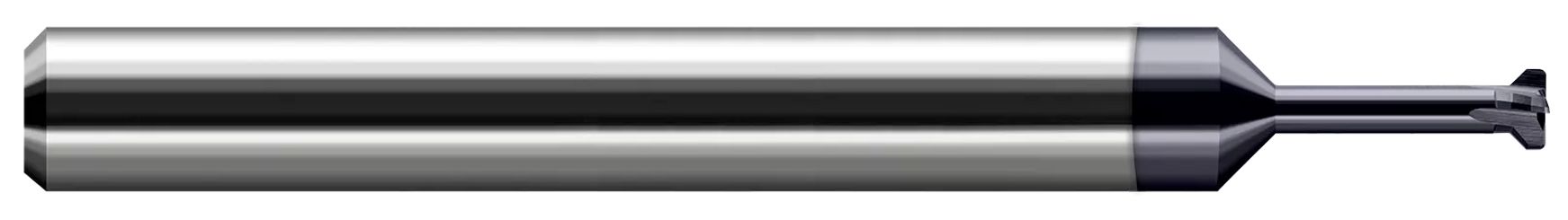

Harvey Tool
877502-C3
HT - 877502-C3
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Diameter (Metric) | 1.9 |
| Diameter (Inch) | 0.08 |
| Length Of Cut (Inch) | 0.03 |
| Coating/Finish | C3 |
| Corner Radius (Decimal) | 0.005 |
| Neck Diameter (Decimal) | 0.05 |
| Short Description | 0.0750" (1.9 mm) Cutter DIA x 0.0150" (1/64) Width (TSC) x 0.1870" (3/16) Neck Length - 4 FL - AlTiN Coated |
| Long Description | 0.0750" (1.9 mm) Cutter DIA x 0.0150" (1/64) Width (TSC) x 0.1870" (3/16) Neck Length Carbide Thread Relief Cutter, 4 Flutes, AlTiN Coated |
| Shank Size | 1/8 Inch |
| Included Angle | 90 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 4 |
| Neck Length (Decimal) | 0.19 |
| Neck Length (Fraction) | 3/16 |
| Angle per Side | 45 Degrees |
| Metric | No |
| End Length (Decimal) | 0.02 |
| End Length (Fraction) | 1/64 |
| Radial Depth of Cut (Decimal) | 0.02 |
| Radial Depth of Cut (Fraction) | 1/64 |
| Radius (Decimal) | 0.005 |
| Base Item Number | 877502-C3 |
| Neck Diameter (Inch) | 0.05 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0750" (1.9 mm) |
| Profile | Thread Relief |
| Neck Diameter | 0.0420" |
| Neck Length | 0.1870" (3/16) |
| Length of Cut | 0.0300" |
| Corner Radius | 0.0050" |
| Radius | 0.0000" |
