Harvey Tool
877572

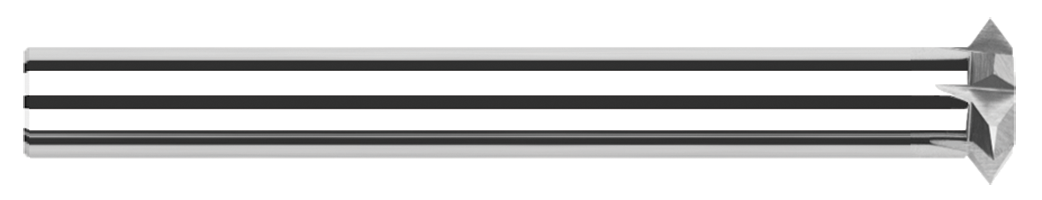

Double Angle Shank Cutter - Pointed
Specifications
| Short Description | 0.3125" (5/16) Cutter DIA x 0.1550" Width - 90° Included Angle - 8 FL |
|---|---|
| Long Description | 0.3125" (5/16) Cutter DIA x 0.1550" Width Carbide Reduced Shank Double Angle Shank Cutter, 8 Flutes |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Cutter Width | 0.1550" |
| Coating | UN |
| Shank Diameter | 0.1575" (4 mm) |
| Flutes | 8 |
| Weight | 0.02 |
| Overall Length | 3.1550" |
| Cutter Diameter | 0.3125" (5/16) |
| Profile | Pointed |
