Harvey Tool
878993

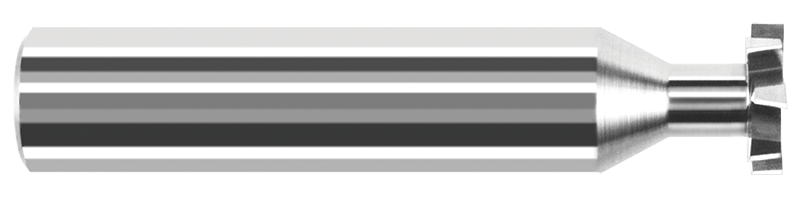

Keyseat Cutter - Staggered Tooth - Square
Specifications
| Type | II |
|---|---|
| Short Description | 0.2500" (1/4) Cutter DIA x 0.0930" (3/32) Width x 0.1250" (1/8) Neck Length - Deep Slotting - 6 FL |
| Long Description | 0.2500" (1/4) Cutter DIA x 0.0930" (3/32) Width x 0.1250" (1/8) Neck Length CarbideSquare Deep Stagger Keyseat Cutter, 6 Flutes |
| Cutter Width | 0.0930" (3/32) |
| Neck Diameter | 0.0780" (5/64) |
| Reach Multiple | (0.5x) |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 6 |
| Weight | 0.06 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Square |
| Metric | N |
| Neck Length | 0.1250" (1/8) |
| Coating | UN |
