Harvey Tool
882016-C6
HT - 882016-C6
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 1/4 |
| Type | II |
| Length Of Cut (Inch) | 0.45 |
| Coating/Finish | C6 |
| Short Description | 0.2500" (1/4) Shank DIA x 0.0100" Flat x 30° included - 2 FL - AlTiN Nano Coated |

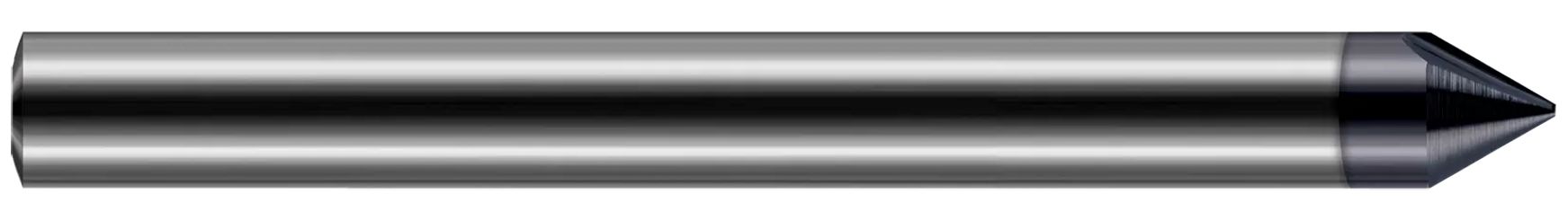

| Long Description | 0.2500" (1/4) Shank DIA x 0.0100" Flat x 30° included Carbide Tipped Engraver for Hardened Steels, 2 Flutes, AlTiN Nano Coated |
| Metric | No |
| Shank Size | 1/4 Inch |
| Included Angle | 30 Degrees |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 2 |
| Flat on Part (Decimal) | 0.01 |
| Tip Flat (Decimal) | 0.01 |
| Angle per Side | 15 Degrees |
| Base Item Number | 882016-C6 |
| Product Type | Industrial Supplies |
