Harvey Tool
884624-C3
HT - 884624-C3
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 3/8 |
| Coating/Finish | C3 |
| Neck Diameter (Decimal) | 0.17 |
| Short Description | 0.3750" (3/8) Cutter DIA x 0.2500" (1/4) Neck Length x 90° included - 3 FL - AlTiN Coated |

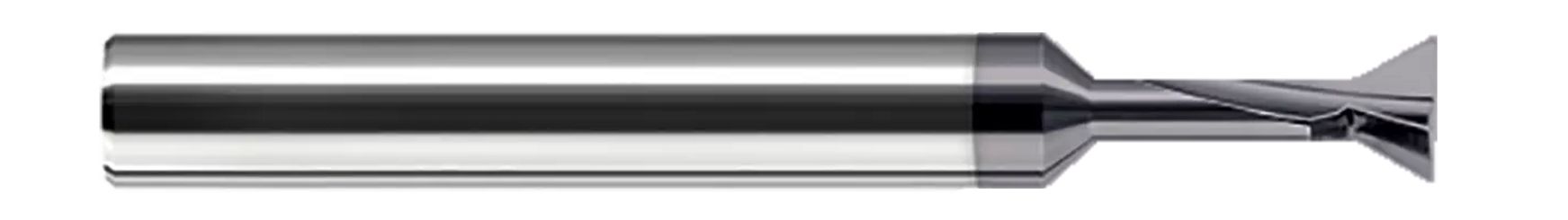

| Long Description | 0.3750" (3/8) Cutter DIA x 0.2500" (1/4) Neck Length x 90° included Carbide Dovetail Cutter, 3 Flutes, AlTiN Coated |
| Shank Size | 3/8 Inch |
| Included Angle | 90 Degrees |
| Number Of Flutes | 3 |
| Neck Length (Decimal) | 0.25 |
| Neck Length (Fraction) | 1/4 |
| Angle per Side | 45 Degrees |
| Metric | N |
| Base Item Number | 884624-C3 |
| Neck Diameter (Inch) | 0.17 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.3750" (3/8) |
| Weight | 0.123 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Pointed |
| Neck Diameter | 0.1650" |
| Neck Length | 0.2500" (1/4) |
| Length of Cut | 0.1050" |
