Harvey Tool
889708

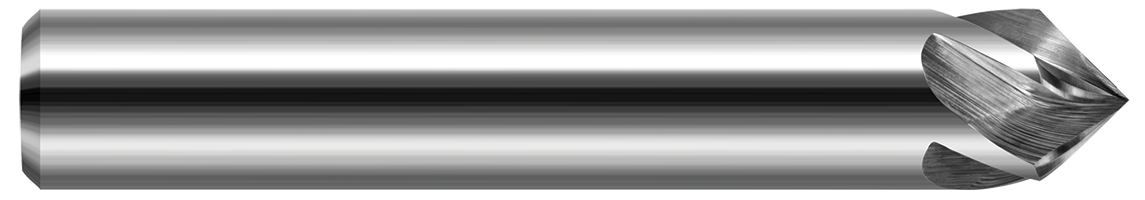

Chamfer Cutter - Pointed - Helical Flutes
Specifications
| Type | I |
|---|---|
| Short Description | 0.1250" (1/8) Shank DIA x 30° per side - 4 Helical FL |
| Long Description | 0.1250" (1/8) Shank DIA x 30° per side Carbide Pointed Chamfer Cutter, 4 Helical Flutes |
| Included Angle | 60 |
| Angle per Side | 30 |
| Metric | N |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| Weight | 0.011 |
| Overall Length | 1.5000" (1-1/2) |
| Profile | Pointed |
| Length of Cut | 0.1000" |
