Harvey Tool
893932-C8

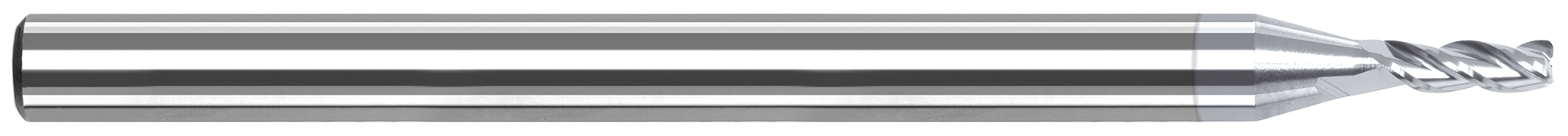

End Mill for Aluminum - Corner Radius
Specifications
| Long Description | 0.5000" (1/2) Cutter DIA x 0.0300" Radius x 0.7500" (3/4) Length of Cut Carbide Corner Radius End Mill for Aluminum Alloys, 3 Flutes, TiB2 Coated |
|---|---|
| Short Description | 3 FL - 0.5000" (1/2) Cutter DIA x 0.0300" Radius x 0.7500" (3/4) LOC - TiB2 Coated |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 3 |
| LOC Multiple | (1.5x) |
| Weight | 0.269 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.5000" (1/2) |
| Profile | Corner Radius |
| Metric | N |
| Coating | C8 |
| Length of Cut | 0.7500" (3/4) |
| Corner Radius | 0.0300" |
