Harvey Tool
894532

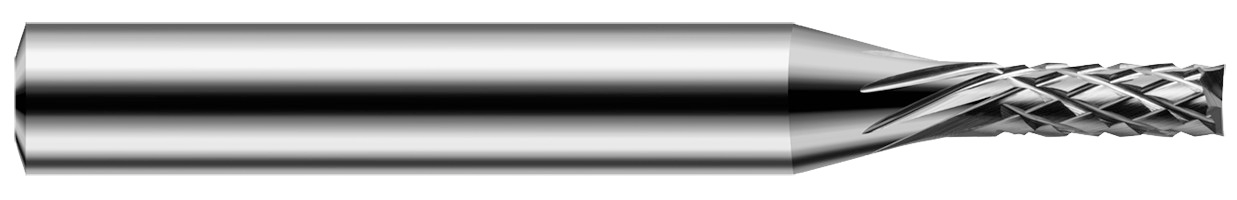

End Mill for Composites - Square
Specifications
| Long Description | 0.5000" (1/2) Cutter DIA x 2.6250" (2-5/8) Length of Cut Carbide Diamond Cut End Mill, 12 RH Teeth, 14 LH Teeth |
|---|---|
| Short Description | 12 RH Teeth, 14 LH Teeth - 0.5000" (1/2) Cutter DIA x 2.6250" (2-5/8) LOC |
| Shank Diameter | 0.5000" (1/2) |
| LOC Multiple | (5x) |
| Weight | 0.342 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.5000" (1/2) |
| Profile | Square |
| Metric | N |
| Coating | UN |
| Length of Cut | 2.6250" (2-5/8) |
| Right Hand Teeth | 12 |
| Left Hand Teeth | 14 |
