Harvey Tool
896446-C6
HT - 896446-C6
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Metric) | 5 |
| Diameter (Inch) | 0.2 |
| Length Of Cut (Inch) | 0.11 |
| Coating/Finish | C6 |
| Neck Diameter (Decimal) | 0.16 |
| Short Description | #1/4-28 - 0.1970" (5 mm) Cutter DIA x 0.5000" (1/2) Reach - 3 FL - AlTiN Nano Coated |

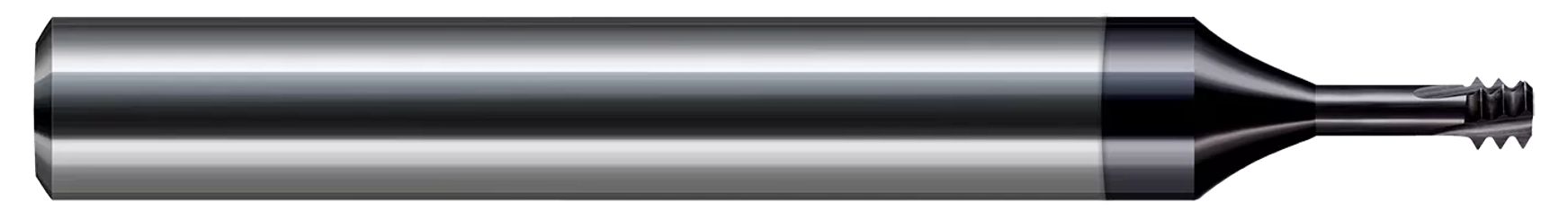

| Long Description | 0.1970" (5 mm) Cutter DIA x 0.5000" (1/2) Reach Carbide Tri-Form #1/4-28 Thread Mill Cutter, 3 Flutes, AlTiN Nano Coated |
| Shank Size | 1/4 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 3 |
| Metric | No |
| Size | 1/4-28 |
| Max Depth of Thread (Decimal) | 0.5 |
| Max Depth of Thread (Fraction) | 1/2 |
| Base Item Number | 896446-C6 |
| Neck Diameter (Inch) | 0.16 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Weight | 0.053 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1970" (5 mm) |
| Profile | Tri-Form |
| Neck Diameter | 0.1510" |
| Length of Cut | 0.1071" |
