Harvey Tool
897708

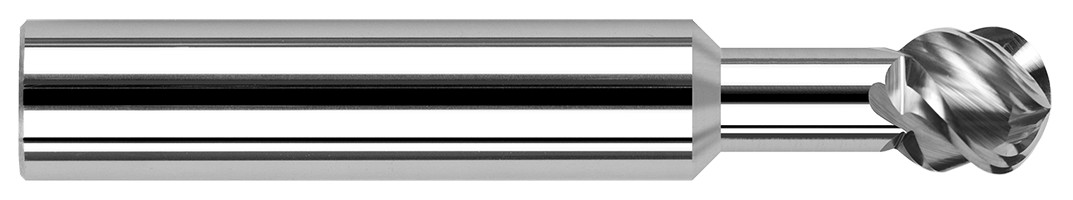

Undercutting End Mill - 270° High Helix
Specifications
| Long Description | 0.1250" (1/8) Cutter DIA x 0.7500" (3/4) Neck Length x 270° Carbide Undercutting End Mill, 4 Flutes |
|---|---|
| Short Description | 0.1250" (1/8) Cutter DIA x 0.7500" (3/4) Neck Length x 270° Wrap Angle - 4 FL |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| Weight | 0.011 |
| Wrap Angle | 270 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0760" |
| Neck Length | 0.7500" (3/4) |
| Coating | UN |
| Length of Cut | 0.1070" |
| Radius | 0.0625" (1/16) |
