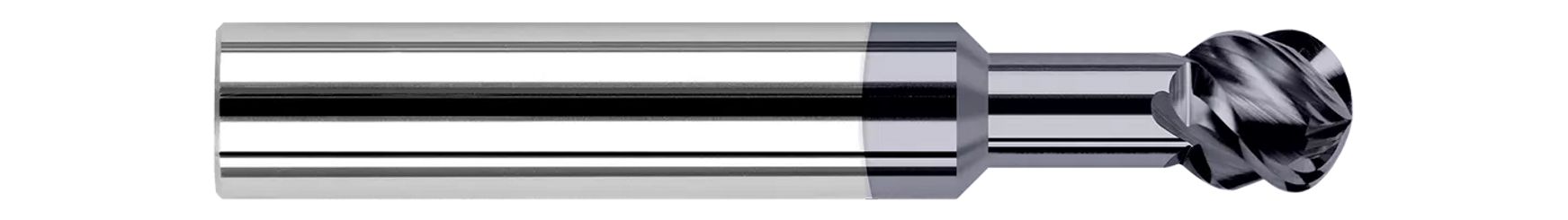

Harvey Tool
897716-C8
HT - 897716-C8
Specifications
| Overall Length (Inch) | 2-1/2 |
|---|---|
| Diameter (Inch) | 1/4 |
| Length Of Cut (Inch) | 0.22 |
| Coating/Finish | C8 |
| Neck Diameter (Decimal) | 0.16 |
| Short Description | 0.2500" (1/4) Cutter DIA x 1.1250" (1-1/8) Neck Length x 270° Wrap Angle - 4 FL - TiB2 Coated |
| Long Description | 0.2500" (1/4) Cutter DIA x 1.1250" (1-1/8) Neck Length x 270° Carbide Undercutting End Mill, 4 Flutes, TiB2 Coated |
| Shank Size | 1/4 Inch |
| Shank Size (Decimal) | 0.25 |
| Number Of Flutes | 4 |
| Neck Length (Decimal) | 1.13 |
| Neck Length (Fraction) | 1-1/8 |
| Metric | No |
| Overall Reach (Decimal) | 1.34 |
| Radius (Decimal) | 0.13 |
| Radius (Fraction) | 1/8 |
| Wrap Angle | 270 |
| Base Item Number | 897716-C8 |
| Neck Diameter (Inch) | 0.16 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2500" (1/4) |
| Weight | 0.044 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.2500" (1/4) |
| Profile | Spherical |
| Neck Diameter | 0.1580" |
| Neck Length | 1.1250" (1-1/8) |
| Length of Cut | 0.2130" |
| Radius | 0.1250" (1/8) |
