Harvey Tool
898178-C4

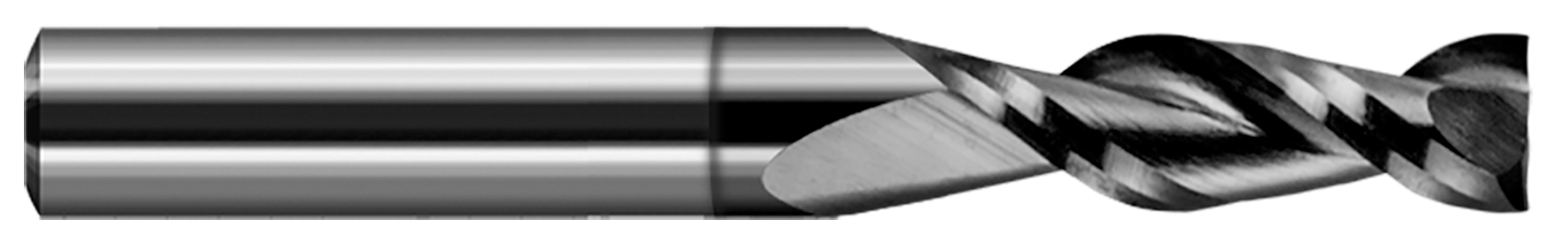

End Mill for Plastics - 2 Flute - Square
Specifications
| Long Description | 0.0781" (5/64) Cutter DIA x 0.2340" (15/64) Length of Cut Carbide Square Upcut End Mill High Helix for Plastic, 2 Flutes, Amorphous Diamond Coated |
|---|---|
| Short Description | 2 FL - 0.0781" (5/64) Cutter DIA x 0.2340" (15/64) LOC - Amorphous Diamond Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0781" (5/64) |
| Profile | Square |
| Metric | N |
| Coating | C4 |
| Length of Cut | 0.2340" (15/64) |
