Harvey Tool
898408

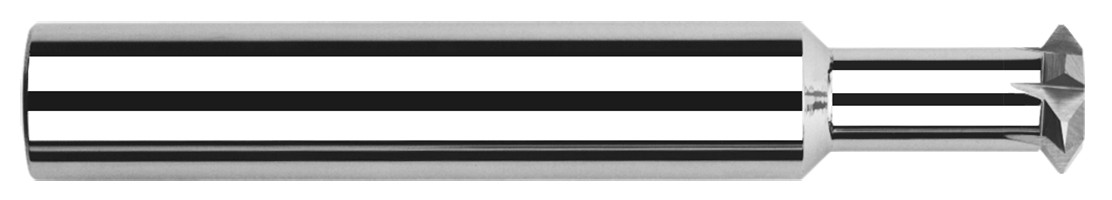

Double Angle Shank Cutter - Tip Radius
Specifications
| Short Description | 0.1250" (1/8) Cutter DIA x 0.0050" Radius x 0.0670" Width x 0.3120" (5/16) Neck Length - 90° Included Angle - 4 FL |
|---|---|
| Long Description | 0.1250" (1/8) Cutter DIA x 0.0050" Radius x 0.0670" Width x 0.3120" (5/16) Neck Length Carbide Double Angle Shank Cutter, 4 Flutes |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Cutter Width | 0.0670" |
| Coating | UN |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| Weight | 0.011 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Tip Radius |
| Neck Diameter | 0.0620" (1/16) |
| Neck Length | 0.3120" (5/16) |
| Radius | 0.0050" |
