Harvey Tool
902915-C8
HT - 902915-C8
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Length Of Cut (Inch) | 0.23 |
| Coating/Finish | C8 |
| Short Description | 0.1250" (1/8) Shank DIA x 30° included - 2 FL - TiB2 Coated |

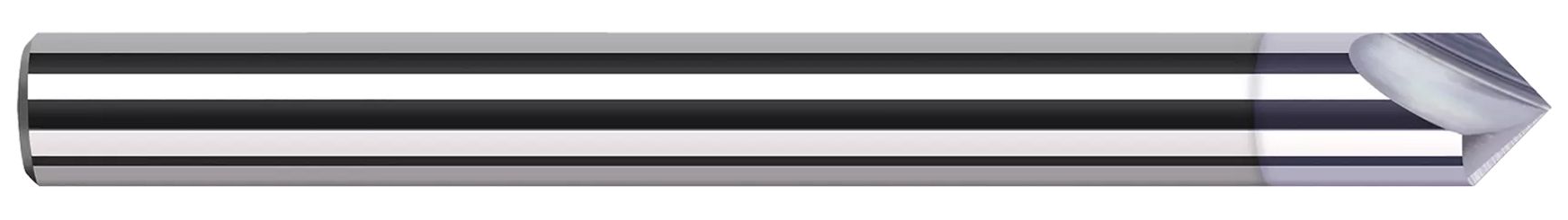

| Long Description | 0.1250" (1/8) Shank DIA x 30° included Carbide Marking Cutter for Non-Ferrous, 2 Flutes, TiB2 Coated |
| Metric | No |
| Shank Size | 1/8 Inch |
| Included Angle | 30 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 2 |
| Web Thickness (Decimal) | 0.015 |
| Web Thickness (Fraction) | 1/64 |
| Angle per Side | 15 Degrees |
| Base Item Number | 902915-C8 |
| Product Type | Industrial Supplies |
