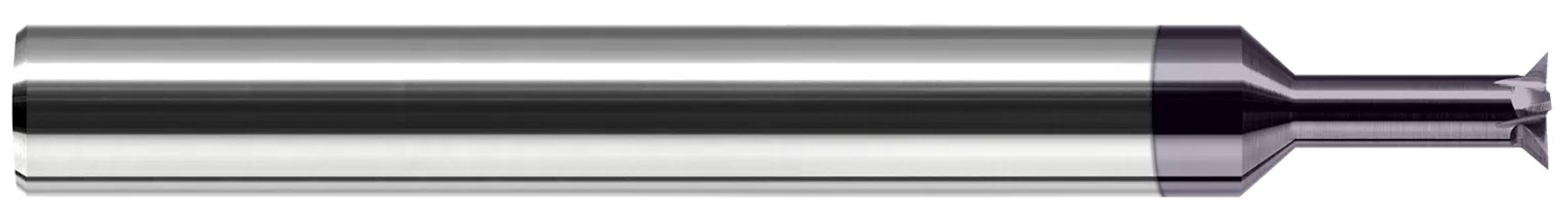

Harvey Tool
910355
HT - 910355
Specifications
| Length Of Cut (Inch) | 0.01 |
|---|---|
| Overall Length (Inch) | 1-1/2 |
| Head Diameter (Inch) | 0.06 |
| Head Diameter (Metric) | 1.4 |
| Coating/Finish | UN |
| Number Of Flutes | 4 |
| Neck Diameter | 0.04 Inch |
| Shank Size | 1/8 Inch |
| Overall Length | 1-1/2 Inch |
| Shank Size (Decimal) | 0.13 |
| Neck Length | 1/4 Inch |
| Metric | No |
| Neck Length (Decimal) | 0.25 |
| Included Angle | 90 Degrees |
| Reach Multiple | 8x |
| Angle per Side | 45 Degrees |
| Length of Cut | 0.01 Inch |
| Base Item Number | 910355 |
| Product Type | Industrial Supplies |
| Weight | 0.009 |
| Shank Diameter | 0.1250" (1/8) |
| Profile | Back Chamfer |
| Head Diameter | 0.0550" (1.4 mm) |
