Harvey Tool
911803-C3

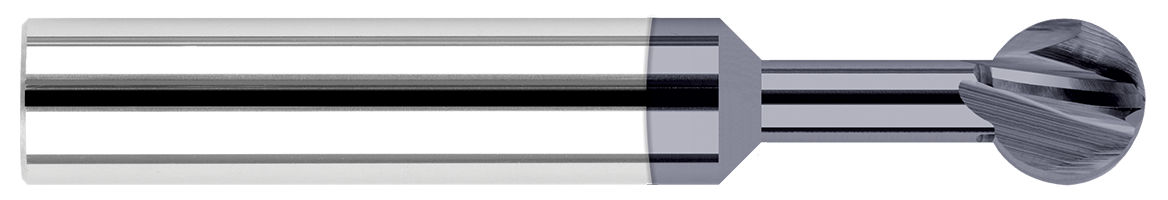

Undercutting End Mill - 300°
Specifications
| Long Description | 0.0470" (3/64) Cutter DIA x 0.1870" (3/16) Neck Length x 300° Carbide Undercutting End Mill, 2 Flutes, AlTiN Coated |
|---|---|
| Short Description | 0.0470" (3/64) Cutter DIA x 0.1870" (3/16) Neck Length x 300° Wrap Angle - 2 FL - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 2 |
| Weight | 0.009 |
| Wrap Angle | 300 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0470" (3/64) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0180" |
| Neck Length | 0.1870" (3/16) |
| Coating | C3 |
| Length of Cut | 0.0439" |
| Radius | 0.0235" |
