Harvey Tool

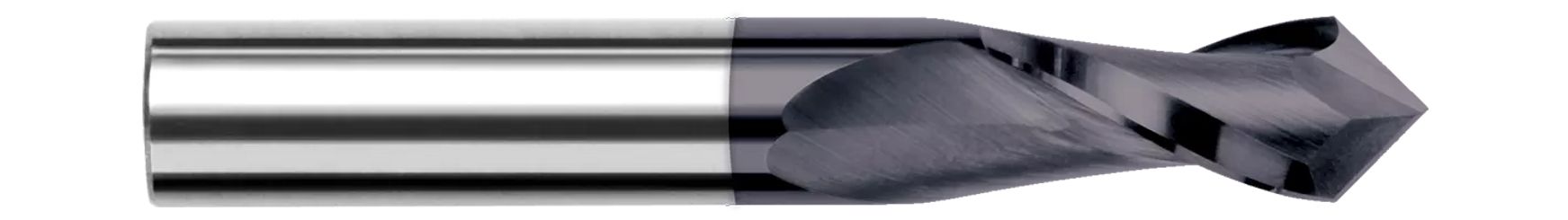

928562-C3
HT - 928562-C3
Specifications
| Coating/Finish | C3 |
|---|---|
| Overall Length (Inch) | 1-1/2 |
| Number Of Flutes | 2 |
| Length Of Cut (Inch) | 3/16 |
| Short Description | 0.0620" Cutter DIA x 0.1870" (3/16) LOC x 100° included - 2 FL - AlTiN Coated |
| Long Description | 0.0620" Cutter DIA x 0.1870" (3/16) Length of Cut x 100° included Carbide Drill/End Mill, 2 Flutes, AlTiN Coated |
| Shank Size | 1/8 Inch |
| Included Angle | 100 Degrees |
| LOC Multiple | 3x |
| Angle per Side | 50 Degrees |
| Web Thickness (Decimal) | 0.005 |
| Base Item Number | 928562-C3 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0620" |
| Profile | Mill Style |
| Metric | N |
| Length of Cut | 0.1870" (3/16) |
