Harvey Tool
938280-C3

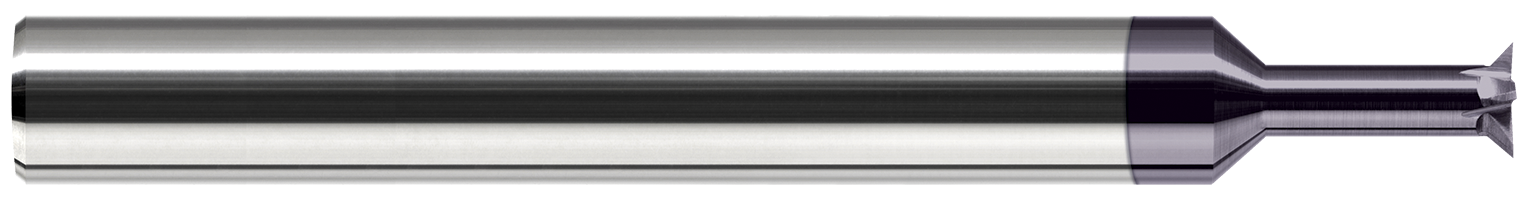

Chamfer Cutter - Back Chamfer Cutter
Specifications
| Short Description | 0.5000" (1/2) Head DIA x 0.0880" LOC x 1.5000" (1-1/2) Neck Length x 45° per side - 6 FL - AlTiN Coated |
|---|---|
| Long Description | 0.5000" (1/2) Head DIA x 0.0880" LOC x 1.5000" (1-1/2) Neck Length x 45° per side Carbide Back Chamfer Cutter, 6 Flutes, AlTiN Coated |
| Included Angle | 90 |
| Angle per Side | 45 |
| Metric | N |
| Reach Multiple | (5x) |
| Coating | C3 |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 6 |
| Weight | 0.205 |
| Overall Length | 3.0000" (3) |
| Profile | Back Chamfer |
| Head Diameter | 0.5000" (1/2) |
| Neck Diameter | 0.3170" |
| Neck Length | 1.5000" (1-1/2) |
| Length of Cut | 0.0880" |
