Harvey Tool
940062-C3
HT - 940062-C3
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Diameter (Inch) | 1/16 |
| Length Of Cut (Inch) | 0.06 |
| Coating/Finish | C3 |
| Neck Diameter (Decimal) | 0.03 |
| Short Description | 0.0625" (1/16) Cutter DIA x 0.1870" (3/16) Neck Length x 300° Wrap Angle - 2 FL - AlTiN Coated |

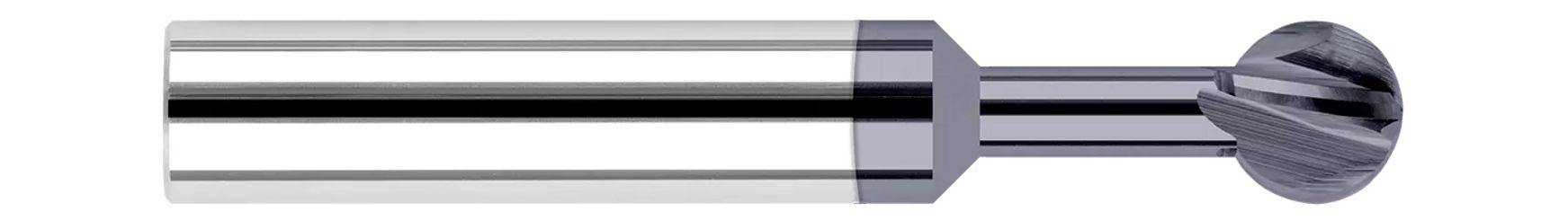

| Long Description | 0.0625" (1/16) Cutter DIA x 0.1870" (3/16) Neck Length x 300° Carbide Undercutting End Mill, 2 Flutes, AlTiN Coated |
| Shank Size | 1/8 Inch |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 2 |
| Neck Length (Decimal) | 0.19 |
| Neck Length (Fraction) | 3/16 |
| Metric | No |
| Overall Reach (Decimal) | 0.25 |
| Radius (Decimal) | 0.04 |
| Radius (Fraction) | 1/32 |
| Wrap Angle | 300 |
| Base Item Number | 940062-C3 |
| Neck Diameter (Inch) | 0.03 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0625" (1/16) |
| Profile | Spherical |
| Neck Diameter | 0.0240" (.6 mm) |
| Neck Length | 0.1870" (3/16) |
| Length of Cut | 0.0578" |
| Radius | 0.0312" (1/32) |
