Harvey Tool
943132

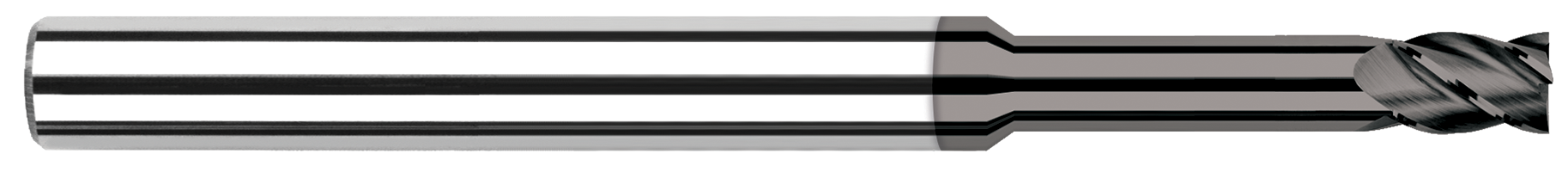

End Mill - CVD Diamond - Square
Specifications
| Long Description | 0.5000" (1/2) Cutter DIA x 0.7500" (3/4) Length of Cut x 2.6250" (2-5/8) Reach Carbide Square End Mill, 4 Flutes, CVD Diamond 9µm |
|---|---|
| Short Description | 4 FL - 0.5000" (1/2) Cutter DIA x 0.7500" (3/4) LOC x 2.6250" (2-5/8) Reach - CVD Diamond 9µm |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.379 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.5000" (1/2) |
| Profile | Square |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.4900" |
| Coating | C5 |
| Length of Cut | 0.7500" (3/4) |
