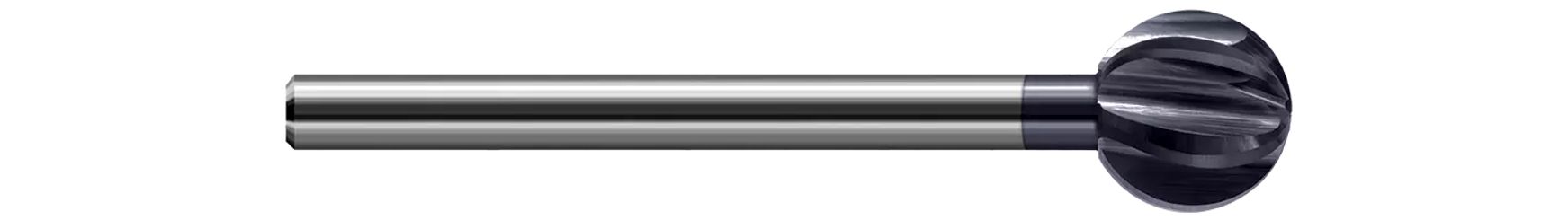

Harvey Tool
947432-C3
HT - 947432-C3
Specifications
| Overall Length (Inch) | 4 |
|---|---|
| Diameter (Inch) | 1/2 |
| Length Of Cut (Inch) | 0.48 |
| Coating/Finish | C3 |
| Short Description | 0.5000" (1/2) Cutter DIA x 300° Wrap Angle - 6 FL - AlTiN Coated |
| Long Description | 0.5000" (1/2) Cutter DIA x 300° Carbide Reduce Shank Undercut End Mill, 6 Flutes, AlTiN Coated |
| Shank Size | 3/16 Inch |
| Shank Size (Decimal) | 0.19 |
| Number Of Flutes | 6 |
| Metric | No |
| Radius (Decimal) | 0.25 |
| Radius (Fraction) | 1/4 |
| Wrap Angle | 300 |
| Base Item Number | 947432-C3 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1875" (3/16) |
| Weight | 0.068 |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.5000" (1/2) |
| Profile | Spherical |
| Length of Cut | 0.4720" |
| Radius | 0.2500" (1/4) |
