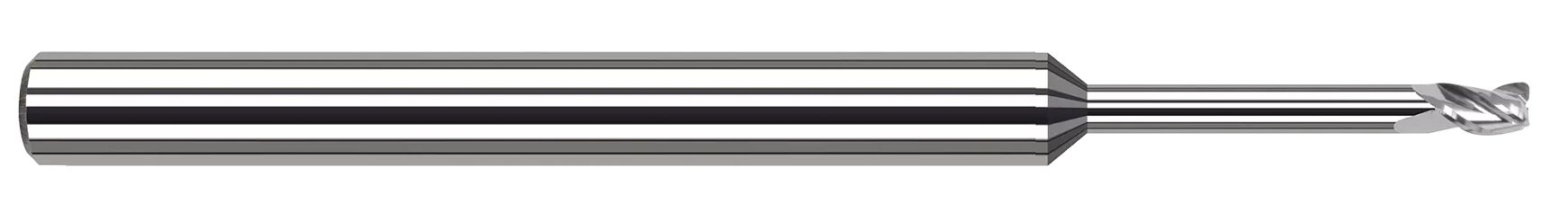

Harvey Tool
949708
HT - 949708
Specifications
| Length Of Cut (Inch) | 3/16 |
|---|---|
| Corner Radius (Inch) | 0.005 |
| Overall Length (Inch) | 3 |
| Coating/Finish | UN |
| Number Of Flutes | 3 |
| Corner Radius | 0.0050" |
| Neck Diameter | 0.13 Inch |
| Diameter | 0.13 |
| Shank Size | 1/8 Inch |
| Overall Length | 3 Inch |
| Shank Size (Decimal) | 0.13 |
| Metric | No |
| Overall Reach (Decimal) | 1.5 |
| Overall Reach (Fraction) | 1-1/2 |
| Reach Multiple | 12x |
| Length of Cut | 3/16 Inch |
| LOC Multiple | 1.5x |
| Base Item Number | 949708 |
| Product Type | Industrial Supplies |
| Weight | 0.018 |
| Shank Diameter | 0.1250" (1/8) |
| Cutter Diameter | 0.1250" (1/8) |
| Profile | Corner Radius |
