Harvey Tool
956124
HT - 956124
Specifications
| Overall Length (Inch) | 3-1/2 |
|---|---|
| Diameter (Inch) | 3/8 |
| Length Of Cut (Inch) | 0.33 |
| Coating/Finish | UN |
| Short Description | 0.3750" (3/8) Cutter DIA x 270° Wrap Angle - 6 FL |

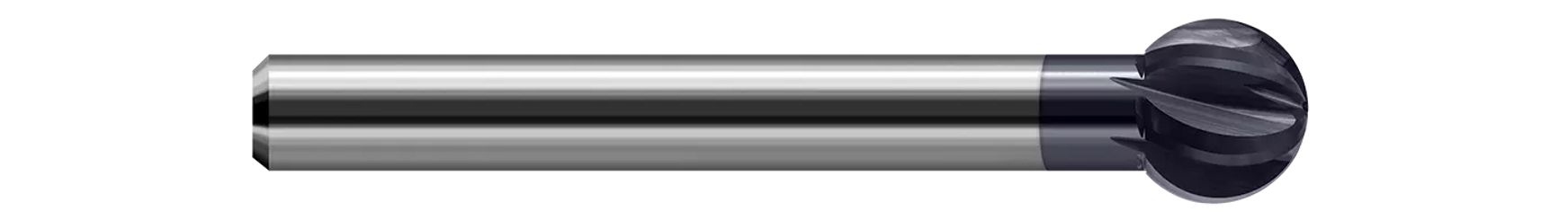

| Long Description | 0.3750" (3/8) Cutter DIA x 270° Carbide Reduce Shank Undercut End Mill, 6 Flutes |
| Shank Size | 6 |
| Shank Size (Decimal) | 0.24 |
| Number Of Flutes | 6 |
| Metric | No |
| Radius (Decimal) | 0.19 |
| Radius (Fraction) | 3/16 |
| Wrap Angle | 270 |
| Base Item Number | 956124 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.2362" (6 mm) |
| Weight | 0.082 |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.3750" (3/8) |
| Profile | Spherical |
| Length of Cut | 0.3240" |
| Radius | 0.1870" (3/16) |
