Harvey Tool
956370-C3

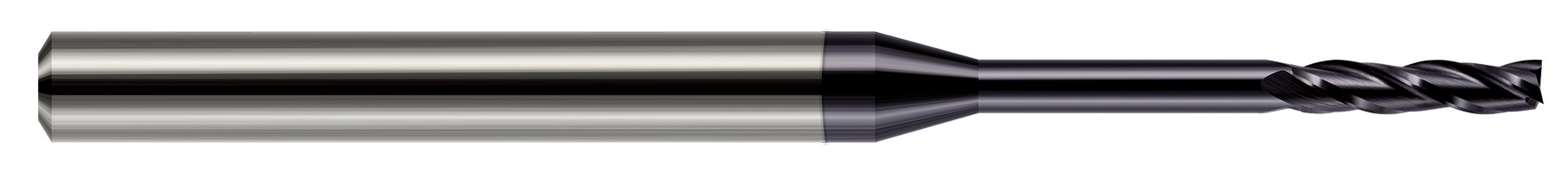

Miniature End Mill - 3 Flute - Square
Specifications
| Long Description | 0.0700" Cutter DIA x 0.3750" (3/8) Length of Cut x 0.7000" Reach Carbide Square End Mill, 3 Flutes, AlTiN Coated |
|---|---|
| Short Description | 3 FL - 0.0700" Cutter DIA x 0.3750" (3/8) LOC x 0.7000" Reach - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 3 |
| LOC Multiple | (5x) |
| Weight | 0.013 |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.0700" |
| Profile | Square |
| Reach Multiple | (10x) |
| Metric | N |
| Neck Diameter | 0.0685" |
| Coating | C3 |
| Length of Cut | 0.3750" (3/8) |
