Harvey Tool
960475-C3
HT - 960475-C3
Specifications
| Length Of Cut (Inch) | 0.07 |
|---|---|
| Overall Length (Inch) | 3 |
| Type | I |
| Coating/Finish | C3 |
| Number Of Flutes | 2 |
| Short Description | 0.5000" (1/2) Shank DIA x 75° per side - 2 FL - AlTiN Coated |
| Shank Size | 1/2 Inch |
| Overall Length | 3.0000" (3) |
| Shank Size (Decimal) | 0.5 |

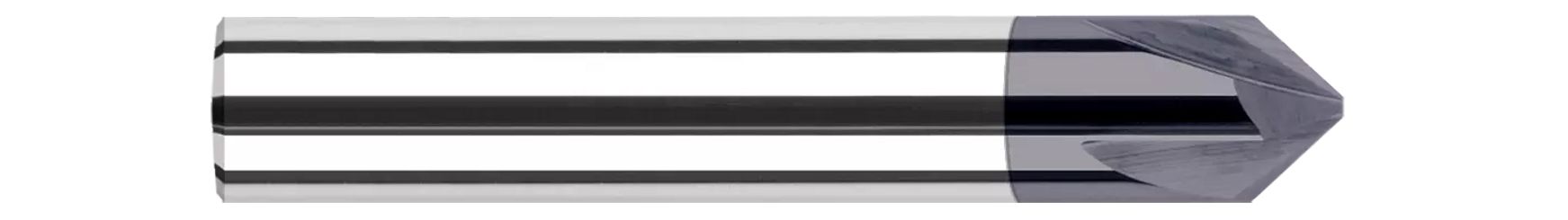

| Long Description | 0.5000" (1/2) Shank DIA x 75° per side Carbide Pointed Chamfer Cutter, 2 Flutes, AlTiN Coated |
| Metric | No |
| Included Angle | 150 Degrees |
| Angle per Side | 75 Degrees |
| Tip (Decimal) | 0.01 |
| Center Cutting | Yes |
| Length of Cut | 0.0670" |
| Base Item Number | 960475-C3 |
| Product Type | Industrial Supplies |
| Weight | 0.289 |
| Shank Diameter | 0.5000" (1/2) |
| Profile | Pointed |
