Harvey Tool
968520
HT - 968520
Specifications
| Coating/Finish | UN |
|---|---|
| Type | I |
| Overall Length (Inch) | 3 |
| Diameter (Inch) | 3/8 |
| Short Description | 0.3750" (3/8) Cutter DIA x 0.0200" Radius x 1.1250" (1-1/8) Neck Length - Standard Slotting - 6 FL |

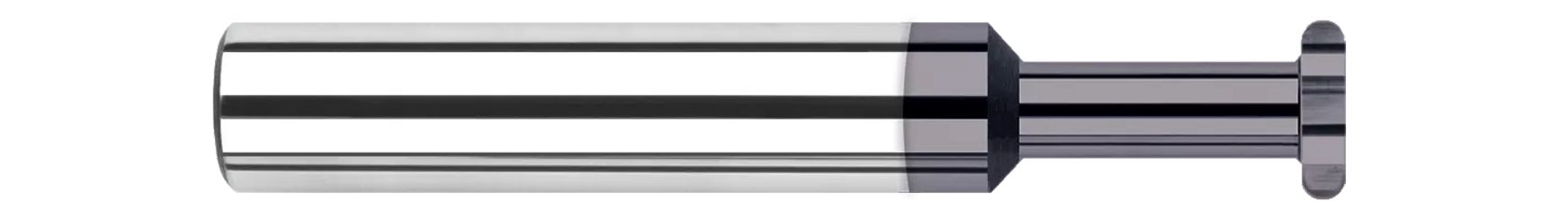

| Long Description | 0.3750" (3/8) Cutter DIA x 0.0200" Radius x 1.1250" (1-1/8) Neck Length Carbide Full Radius Standard Keyseat Cutter, 6 Flutes |
| Cutter Width | 0.04 Inch |
| Shank Size (Fraction) | 3/8 Inch |
| Neck Diameter | 3/16 Inch |
| Shank Size (Decimal) | 0.38 |
| Neck Diameter (Decimal) | 0.19 |
| Number Of Flutes | 6 |
| Neck Length (Decimal) | 1.13 |
| Neck Length (Fraction) | 1-1/8 |
| Radial Depth of Cut (Decimal) | 0.09 |
| Radius (Decimal) | 0.02 |
| Reach Multiple | 3x |
| Base Item Number | 968520 |
| Neck Diameter (Inch) | 0.19 |
| Product Type | Industrial Supplies |
